6.7 - Using `Learn_webgl_matrix` - A Robot Arm Base¶

This lesson introduces an example WebGL program that uses the Learn_webgl_matrix JavaScript class to create and manipulate transformation matrices. When you render a scene, there is a pre-processing step to initialize your context and separate steps to render an individual frame. We will discuss these two major issues separately.

This example will be enhanced in the next several lessons, so please make sure you understand this example before proceeding to the next lesson.

The Graphics Pipeline (Review)¶

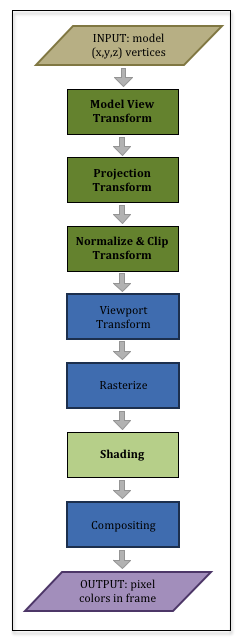

We have discussed the graphics pipeline in previous lessons, but we need to review how the pipeline works. The first 3 operations in the pipeline are transformations which accomplish the following tasks:

Model View Transform: This is actually two separate and distinct operations:
- Model Transform: Transform a model into it’s correct size, location, and orientation.
- View Transform: Transform a model into the correct location and orientation in front of the scene’s camera.
Projection Transform: Transform a model to project it from 3-dimensional space onto a 2-dimensional viewing window.
Normalize and Clip Transform: Transform a model so that it can be easily discarded if it is not in the view frame of the scene’s camera. (This is called “clipping” because one part of a model might be visible, while another part might not be.)

It is important that you understand the following “big ideas”:

All of these transform operations are performed by a 4-by-4 transformation matrix.
You must always include all of these transforms. They are all important to the graphics pipeline.
There are too many details to discuss all of these transforms at the same time. This lesson will concentrate on the model transform. The other transforms will be fully explained in future lessons. (In the following demo code we will “magically” create a view transform and a projection transform (which includes the normalize and clip Transform. For now, just recognize that these transforms are needed.)

It is common practice to combine the model, view, and projection transformations into a single 4-by-4 transformation matrix so that a vertex shader only has to multiply each vertex once. This demo code creates such a combined transform. Remember that transformations must be ordered from right to left. Practically every WebGL program that you ever develop will create a vertex transformation matrix like this:

VertexTransform =ProjectionMatrix
*ViewMatrix
*ModelMatrix
Eq1

Scene Rendering Initialization¶

Using good software development design principles, we create a JavaScript class to encapsulate the functionality needed to render a scene. The constructor of the class will perform the scene initialization. The constructor code is all statements that are not inside a sub-function of the class. Because we use the JavaScript "use strict"; mode, all variables and functions must be defined before they can be used. This causes the constructor code to be spread throughout the class definition. Study the following example code and then review the description of the code below.

Note that the canvas window contains the rendering of a single model which is the base of a robotic arm. This is the first iteration of a series of demo programs presented in the succeeding lessons.

Show: Code Canvas Run Info

simple_transform_example_render.js

/**
 * simple_transform_example_render.js, By Wayne Brown, Spring 2016*
 */

/**
 * The MIT License (MIT)
 *
 * Copyright (c) 2015 C. Wayne Brown
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in all
 * copies or substantial portions of the Software.

* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

"use strict";

//-------------------------------------------------------------------------
/**
 * Initialize and render a scene.
 * @param learn Learn_webgl An instance of Learn_webgl
 * @param vshaders_dictionary Object a set of vertex shaders
 * @param fshaders_dictionary Object a set of fragment shaders
 * @param models Object a set of models
 * @param controls Array a list of control id's
 * @constructor
 */
window.SceneSimpleExampleRender = function (learn, vshaders_dictionary,
                                         fshaders_dictionary, models, controls) {

// Private variables
  var self = this; // Store a local reference to the new object.

var out = learn.out;
  var events;
  var canvas;

var gl = null;
  var program = null;
  var render_models = {};

var matrix = new Learn_webgl_matrix();
  var transform = matrix.create();
  var projection = matrix.createOrthographic(-8, 8, -8, 8, -8, 8);
  var view = matrix.create();
  var base_y_rotate = matrix.create();

// We don't have a real view transform at this time, but we want to look
  // down on the model, so we will rotate everything by 10 degrees.
  matrix.rotate(view, 10, 1, 0, 0);

// Public variables that will be changed by event handlers or that
  // the event handlers need access to.
  self.canvas_id = learn.canvas_id;
  self.base_y_angle = 0.0;
  self.animate_active = true;

//-----------------------------------------------------------------------
  // Public function to render the scene.
  self.render = function () {

// Clear the entire canvas window background with the clear color and
    // the depth buffer to perform hidden surface removal.
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

// The base is being rotated by the animation callback so the rotation
    // about the y axis must be calculated on every frame.
    matrix.rotate(base_y_rotate, self.base_y_angle, 0, 1, 0);

// Combine the transforms into a single transformation
    matrix.multiplySeries(transform, projection, view, base_y_rotate);

// Draw the models
    render_models.base.render(transform);
  };

//-----------------------------------------------------------------------
  // Public function to delete and reclaim all rendering objects.
  self.delete = function () {
    // Clean up shader programs
    gl.deleteShader(program.vShader);
    gl.deleteShader(program.fShader);
    gl.deleteProgram(program);
    program = null;

// Delete each model's buffer objects
    render_models.base.delete();
    render_models = null;

// Disable any animation
    self.animate_active = false;

// Remove all event handlers
    events.removeAllEventHandlers();
    events = null;

// Release the GL graphics context
    gl = null;
  };

//-----------------------------------------------------------------------
  // Object constructor. One-time initialization of the scene.

// Get the rendering context for the canvas
  canvas = learn.getCanvas(self.canvas_id);
  if (canvas) {
    gl = learn.getWebglContext(canvas);
    if (!gl) {
      return;
    }
  }

// Enable hidden-surface removal
  gl.enable(gl.DEPTH_TEST);

// Set up the rendering shader program and make it the active shader program
  program = learn.createProgram(gl, vshaders_dictionary.shader05, fshaders_dictionary.shader05);
  gl.useProgram(program);

// Create the Buffer Objects needed for this model and copy
  // the model data to the GPU.
  render_models.base = new Learn_webgl_model_render_05(gl, program, models.Base, out);

// Set up callbacks for the user and timer events
  events = new SimpleTransformExampleEvents(self, controls);
  events.animate();
};

Demonstration of a JavaScript class to render a scene.

Animate

Shader errors, Shader warnings, Javascript info

Open this webgl program in a new tab or window

Concerning the pre-processing actions that happen once when the constructor code is executed:

Lines	Description
Lines	Description
33-42	The class function. The `Learn_webgl` object (the `learn` parameter) has downloaded all of the required files and sends this object the shader programs, the models, and a list of the HTML input elements for user input.




45-69, 114-139	The class constructor. This code is executed once when the object is created. It initializes all data needed to render the scene.


55	One instance of the `Learn_webgl_matrix` object is created. This gives you access to all of the matrix functionality we discussed in the previous lesson.



56-59	The transform matrices we need are created and initialized.
56-59	The transform matrices we need are created and initialized.
118-124	The GL context for the canvas window is retrieved.
118-124	The GL context for the canvas window is retrieved.
130	A shader program is created using a vertex shader and a fragment shader.


131	The shader program is made the active graphics pipeline program.
131
135	Buffer objects in the GPU are created and the model data is copied to the GPU.


138	Callbacks for user events are initialized.
138	Callbacks for user events are initialized.

Rendering a Single Frame¶

Each time the scene needs to rendered, the render function in lines 73-87 is called. It takes the following major actions:

Lines	Description
Lines	Description
77	The frame buffer that holds the rendered image is cleared to a background color, and the depth buffer that determines which pixels are visible is cleared.



80	The rotation transform that is causing the base model to rotate is calculated because the angle of rotation changes on every frame.


84	A single vertex transform is calculated, which includes the projection, view, and model transforms. The transforms are ordered from right to left. Conceptually, the model transform happens first, then the view transform, and finally the projection transform.




87	The model is rendered using the calculated transform.
87	The model is rendered using the calculated transform.

The delete function in lines 92-111 is used by the Learn_webgl background processes when you “restart” a demo. The running program must be “cleared” from memory so that a modified version of the demo code can be executed. You can ignore the delete function for now.

Glossary¶

model transform: A 4-by-4 transformation matrix that changes the vertices of a model to set its desired size, location, and orientation.
view transform: A 4-by-4 transformation matrix that moves a model into the correct location and orientation in front of the scene’s camera.
model-view transform: A 4-by-4 transformation matrix that contains both the model transform and the view transform.
projection transform: A 4-by-4 transformation matrix that projects the 3-dimensional models in a scene onto a 2-dimensional viewing plane, just like light in a real-world scene is cast onto a 2-dimensional piece of film. (This transform also normalizes the data in preparation for clipping away models that are not visible from the camera’s current view.)

Next Section - 6.8 - Chaining Transformations - Adding a Forearm
