6.9 - Chaining Transformations - Adding an Upper Arm¶

The previous lesson demonstrated a robot arm with one linkage. This lesson will demonstrate how to chain transforms together to add a second linkage.

A Robot Arm - The Upper Arm¶

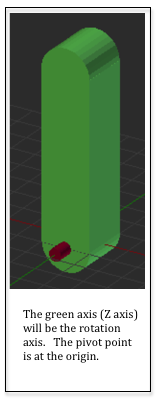

The upper arm of our robot is created in Blender and its local origin is set at (0,0,0) so that it can be easily rotated. It’s axis of rotation is the Z axis. Examine the image of the upper arm.

The upper arm will pivot about the end of the forearm. But rotation is about the origin. We need to rotate the upper arm about the origin, and then move it to the end of the forearm. But the forearm is rotating, as well as the base. So how do we get the upper arm to the right place? We use the transforms that are positioning the forearm! Here’s the transforms we need to apply to the upper arm, in this order:

Rotate it to a desired angle about its red pin.
Translate it to the end of the forearm.
Rotate it based on the forearm’s angle.
Translate it to the base’s red pin.
Rotate it according to the base’s rotation angle.

The transformation for the upper arm needs to be the following:

modelTransform =baseRotation
*translateToPin
*rotateForearm
*translateToForearmEnd
*rotateUpperarm
Eq2

Hopefully you are seeing a pattern here!

Scene Rendering Initialization¶

The demo program below is a modified version of the code from the previous lesson. It adds an “upper arm” model to the robot arm. We need two new transform matrices to manipulate the upper arm. One transform will rotate the arm about it’s pivot pin. The rotation will possibly change on each new frame, so this matrix will be created in the initialization code but assigned its value in the frame rendering function. The translation matrix can be create and assigned its value once, since the distance to the end of the forearm is a constant and never changes. Study the example code and then review the code description below. If you want to experiment, the demo code is modifiable.

Show: Code Canvas Run Info

simple_transform_example_render3.js

/**
 * simple_transform_example_render3.js, By Wayne Brown, Spring 2016*
 */

/**
 * The MIT License (MIT)
 *
 * Copyright (c) 2015 C. Wayne Brown
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in all
 * copies or substantial portions of the Software.

* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

"use strict";

//-------------------------------------------------------------------------
/**
 * Initialize and render a scene.
 * @param learn Learn_webgl An instance of Learn_webgl
 * @param vshaders_dictionary Object a set of vertex shaders
 * @param fshaders_dictionary Object a set of fragment shaders
 * @param models Object a set of models
 * @param controls Array a list of control id's
 * @constructor
 */
window.SceneSimpleExampleRender3 = function (learn, vshaders_dictionary,
                                         fshaders_dictionary, models, controls) {

// Private variables
  var self = this; // Store a local reference to the new object.

var out = learn.out;
  var events;
  var canvas;

var gl = null;
  var program = null;
  var render_models = {};

var matrix = new Learn_webgl_matrix();
  var transform = matrix.create();
  var projection = matrix.createOrthographic(-10, 10, -2, 18, -20, 20);
  var view = matrix.create();
  var base_y_rotate = matrix.create();
  var forearm_rotate = matrix.create();
  var forearm_translate = matrix.create();
  var upperarm_rotate = matrix.create();
  var upperarm_translate = matrix.create();

// Set the forearm_translate to a constant translation along the Y axis
  matrix.translate(forearm_translate, 0, 2, 0);
  matrix.translate(upperarm_translate, 0, 8, 0);

// We don't have a real view transform at this time, but we want to look
  // down on the model, so we will rotate everything by 10 degrees.
  matrix.rotate(view, 10, 1, 0, 0);

// Public variables that will be changed by event handlers or that
  // the event handlers need access to.
  self.canvas_id = learn.canvas_id;
  self.base_y_angle = 0.0;
  self.forearm_angle = 0.0;
  self.upperarm_angle = 0.0;
  self.animate_active = true;

//-----------------------------------------------------------------------
  // Public function to render the scene.
  self.render = function () {

// Clear the entire canvas window background with the clear color and
    // the depth buffer to perform hidden surface removal.
    gl.clear(gl.COLOR_BUFFER_BIT | gl.DEPTH_BUFFER_BIT);

// The base is being rotated by the animation callback so the rotation
    // about the y axis must be calculated on every frame.
    matrix.rotate(base_y_rotate, self.base_y_angle, 0, 1, 0);

// Combine the transforms into a single transformation
    matrix.multiplySeries(transform, projection, view, base_y_rotate);

// Draw the base model
    render_models.base.render(transform);

// Set the rotation matrix for the forearm; rotate about the Z axis
    matrix.rotate(forearm_rotate, self.forearm_angle, 0, 0, 1);

// Calculate the transform for the forearm
    matrix.multiplySeries(transform, projection, view, base_y_rotate,
        forearm_translate, forearm_rotate);

// Draw the forearm model
    render_models.forearm.render(transform);

// Set the rotation matrix for the upperarm; rotate about the Z axis
    matrix.rotate(upperarm_rotate, self.upperarm_angle, 0, 0, 1);

// Calculate the transform for the upperarm
    matrix.multiplySeries(transform, projection, view, base_y_rotate,
        forearm_translate, forearm_rotate, upperarm_translate, upperarm_rotate);

// Draw the upperarm model
    render_models.upperarm.render(transform);
  };

//-----------------------------------------------------------------------
  // Public function to delete and reclaim all rendering objects.
  self.delete = function () {
    // Clean up shader programs
    gl.deleteShader(program.vShader);
    gl.deleteShader(program.fShader);
    gl.deleteProgram(program);
    program = null;

// Delete each model's buffer objects
    render_models.base.delete();
    render_models.forearm.delete();
    render_models.upperarm.delete();
    render_models = null;

// Disable any animation
    self.animate_active = false;

// Remove all event handlers
    events.removeAllEventHandlers();
    events = null;

// Release the GL graphics context
    gl = null;
  };

//-----------------------------------------------------------------------
  // Object constructor. One-time initialization of the scene.

// Get the rendering context for the canvas
  canvas = learn.getCanvas(self.canvas_id);
  if (canvas) {
    gl = learn.getWebglContext(canvas);
    if (!gl) {
      return;
    }
  }

// Enable hidden-surface removal
  gl.enable(gl.DEPTH_TEST);

// Set up the rendering shader program and make it the active shader program
  program = learn.createProgram(gl, vshaders_dictionary.shader05, fshaders_dictionary.shader05);
  gl.useProgram(program);

// Create the Buffer Objects needed for this model and copy
  // the model data to the GPU.
  render_models.base = new Learn_webgl_model_render_05(gl, program, models.Base, out);
  render_models.forearm = new Learn_webgl_model_render_05(gl, program, models.Forearm, out);
  render_models.upperarm = new Learn_webgl_model_render_05(gl, program, models.Upperarm, out);

// Set up callbacks for the user and timer events
  events = new SimpleTransformExampleEvents3(self, controls);
  events.animate();
};

Adding an upper arm to a robot base and forearm.

-90.0 +90.0 Forearm angle: 0.00 :
-90.0 +90.0 Upper arm angle: 0.00 :
Animate

Shader errors, Shader warnings, Javascript info

Open this webgl program in a new tab or window

Concerning the pre-processing actions that happen once when the constructor code is executed:

Lines	Description
Lines	Description
62-63	Two new transforms are created to manipulate the upper arm.
62-63	Two new transforms are created to manipulate the upper arm.
67	The translation for the upper arm is set to a constant 8 units along Y.
67
78	A class variable is created to store the angle of the upper arm. It is made public so the HTML slider event handler can change its value.


169	Buffer objects in the GPU are created and the model data is copied to the GPU for the upper arm model.

Rendering a Single Frame¶

Each time the scene needs to rendered, the render function in lines 83-117 is called. This function is identical to the previous demo version with the following exceptions:

Lines	Description
Lines	Description
110	The rotation matrix for the upper arm is set because the rotation of the forearm can change on each frame.


113-114	The transform for the upper arm is calculated. Notice that the base rotation and the forearm transforms are included. Also notice the ordering of the transforms from right to left. The order of the transforms is critical.




117	The upper arm model is rendered using the calculated transform.
117

Next Section - 6.10 - Chaining Transformations (Summary)
